Peer to Peer (P2P) Blocking and Exclusions Explained

Peer to Peer (P2P) networks are commonly used for file sharing and instant messaging. In most cases, P2P networks have no educational function and can potentially compromise your network. The Lightspeed Web Filter allows you to easily block all P2P traffic with the click of a button. We do, however, understand that at times P2P traffic is necessary (ex. Skype sessions, some types of internal and external messaging, etc.) We give you the option to add P2P exclusions to exclude specific external IP addresses and ports from being blocked as P2P traffic.

Blocking P2P Traffic

All P2P traffic can be easily blocked through the Web Filter.

1. Within the Lightspeed Rocket Console, navigate to Web Filter and then to General. Scroll down to P2P Controls and check the box next to Block P2P Networks.

You have now successfully blocked all P2P traffic.

P2P Exclusions

You can use P2P exclusions to exclude specific external IP addresses and ports from being blocked as P2P traffic. The following steps will show you how to add, edit, and delete P2P exclusions.

Adding a P2P Exclusion

Adding a P2P Exemption

  • 1. Click Web Filter, then click General.
  • 2. On the General page, scroll down to P2P/Bypass/QUIC Exemptions.

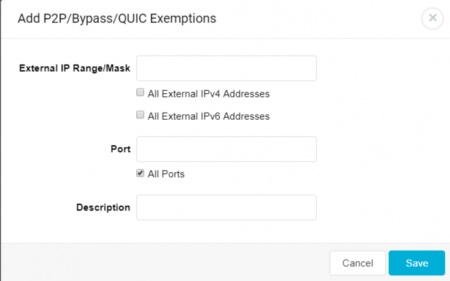

  • 3. In the P2P/Bypass/QUIC Exemptions grid, click the green “+” icon. This action opens the following page:

  • 4. In the Add P2P/Bypass/QUIC Exemption form, edit the fields as needed.
  • 5. Click Save to apply your changes, or click Cancel to discard your changes and return to the previous page.
Field Name Description
External IP Range/Mask Enter an IP address or range in this field in the following format.
192.168.1.0 single IP address
192.168.1.0-192.168.1.254 range of IP addresses
192.168.1.0/24 CIDR notation for same range as above
All External IPv4 Addresses Select (check) to allow traffic to all IPv4 addresses
All External IPv6 Addresses Select (check) to allow P2P traffic to all IPv6 addresses
Port Enter the TCP/UDP port number to enable for traffic.
All Ports Select (check) to enable traffic on all ports.
Description Enter a brief description for this exclusion.



Editing a P2P Exclusion

  • 1. Click Web Filter, then click General.
  • 2. On the General page, scroll down to P2P/Bypass/QUIC Excemptions.

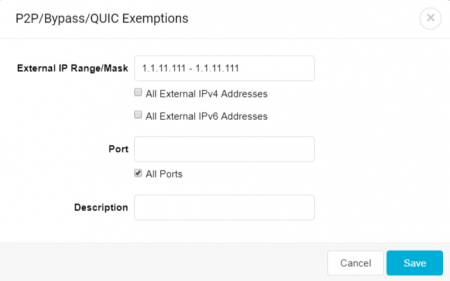

  • 3. Click the name to edit the item. This action opens the following page:

  • 4. In the P2P/Bypass/QUIC Exemptions form, edit the fields as needed.
  • 5. Click Save to apply your changes, or click Cancel to discard your changes and return to the previous page.

Configurable Fields on this Page

Field Name Description
External IP Range/Mask Enter an IP address or range in this field in the following format.
192.168.1.0 single IP address
192.168.1.0-192.168.1.254 range of IP addresses
192.168.1.0/24 CIDR notation for same range as above
All External IPv4 Addresses Select (check) to allow traffic to all IPv4 addresses
All External IPv6 Addresses Select (check) to allow P2P traffic to all IPv6 addresses
Port Enter the TCP/UDP port number to enable for traffic.
All Ports Select (check) to enable traffic on all ports.
Description Enter a brief description for this exclusion.





Deleting a P2P Exclusion

  • To delete (permanently remove) an item, mouse over the item you wish to remove, then click the X on the right side of the row. You will be prompted to confirm the action.

Caution: Items deleted this way are permanently removed, and cannot be recovered.
