Using the Device Registration Portal to Manage Devices

With the Device Registration Portal website, you can manage your mobile devices with the Lightspeed Systems Rocket Web Filter.

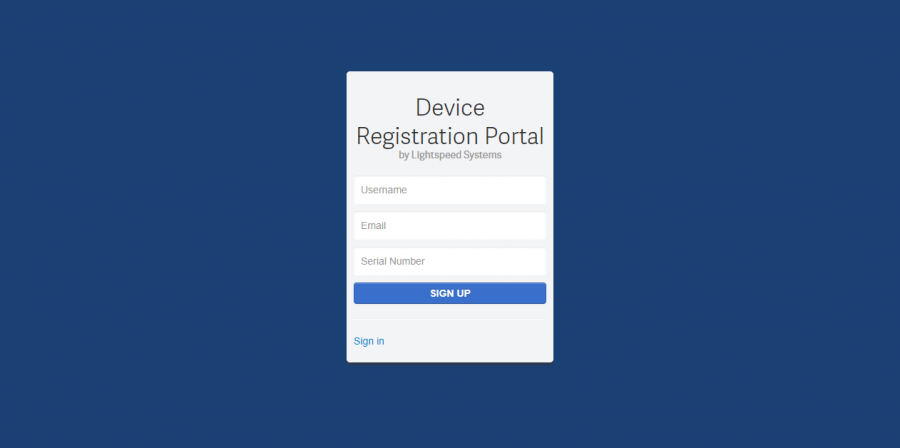

Register Your Customer Account on mobile.lsfilter.com

If you have not done so, register your customer account (supplied by Lightspeed Systems as a serial number) on the mobile.lsfilter.com website by following the steps below.

  • 2. Click Sign up.

  • 3. Create a username.
  • 4. Enter your school-issued email address.
  • 5. Enter your customer ID (serial number).
  • 6. Click SIGN UP.

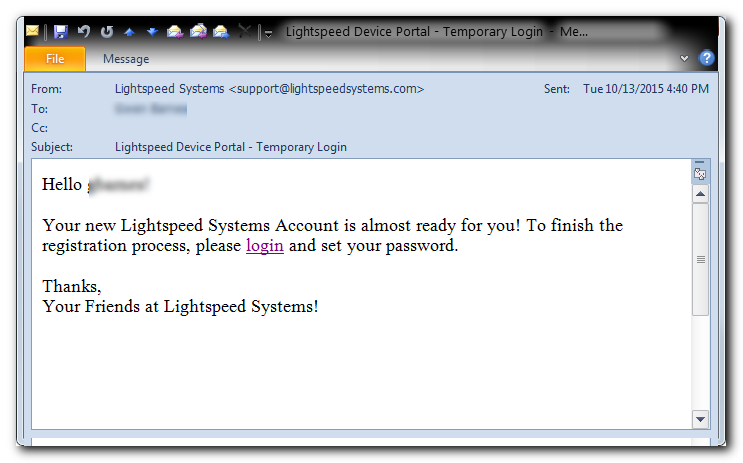

  • 7. Check your email for instructions to create a password and complete your registration.

drp3

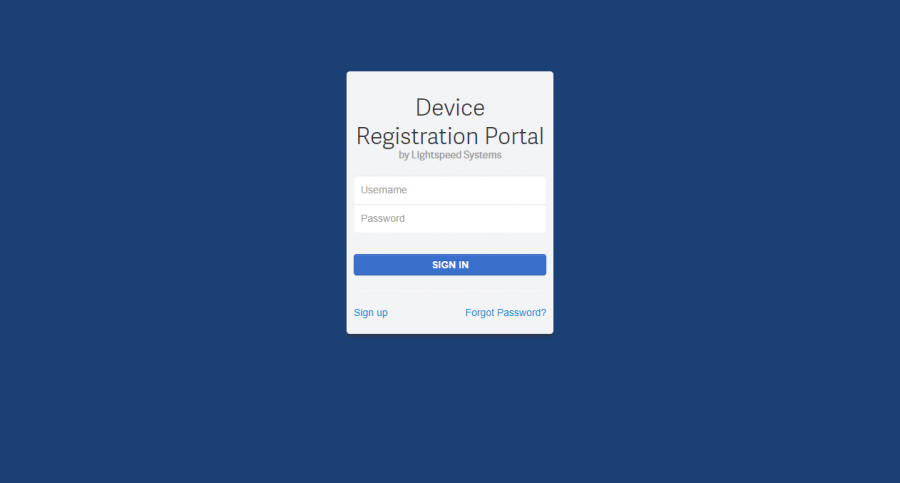

Signing In

Follow the steps below to sign in to mobile.lsfilter.com.

  • 2. Enter your username.
  • 3. Enter your password.
  • 4. Click SIGN IN.

Organization Tab

Use the Organization tab to view and edit details about your organization, including the server name. Click the Save button to save any changes you make.

drp4

  • Name – The name of the organization.
  • Customer ID – Your customer number supplied by Lightspeed Systems.
  • Uninstall Password – The uninstall password used to remove the client from a machine. Please note that this is only applicable for Windows Mobile Filter and the LMA.
  • Default School ID – Enter a School ID here to automatically bind to devices registered to your organization.
  • Allow Updates – Checking this options enables automatic updates of the mobile filter agent and the LMA. Updates start updating from the Device Registration Portal at version 6.0.1.

Note: You can find your school ID by logging into your Rocket and then making sure the correct tier is selected. Next, click Web Filter and then Mobile Devices. Your school ID is listed in the School ID table on this page.

  • Servers – Add the FQDN of your filtering server. If you add multiple servers, all of them will be used in a tiered fashion. The first server will be the primary and the others will be backups if the first does not respond. Click Add when you are done.
  • Domains – If you are using Google or Office 365 authentication, add your managed domain(s) here.
  • IP Ranges – These are your external IP ranges. Please contact Support if you need to add or remove IP ranges.

Devices Tab

Use the Devices tab to view and edit devices in your organization running Mobile Filter.

Note: Registering the MAC address is required to uninstall the client.

drp6

Note: Use the Search window to search for devices.

  • Mac Address – The devices MAC address.
  • School ID – The school ID associated with this device.
  • MF Version – The Mobile Filter version currently installed on the device.
  • LMA Version – For Windows devices, the Lightspeed Management Agent (LMA) version currently installed on the device.
  • Destroy – Click Delete to remove this device from Mobile Filter.

Adding Devices

To add one or more devices, click the Add Device button. The following will be displayed.

drp7

To add a single device, enter its MAC address and then click Add.

Bulk importing devices

Organization admins can follow the steps below to configure a CSV file to add devices by MAC address.

Step 1: Create the Devices by MAC CSV File

Column Field Name Description
A MAC Address Stored in the device and reported to Mobile Manager and Device Registration Portal
B School ID An identifier generated by Device Registration Portal that can be assigned to the device

Note: You can find your school ID by logging into your Rocket and then making sure the correct tier is selected. Next, click Web Filter and then Mobile Devices. Your school ID is listed in the School ID table on this page.

Format

Column A Column B
mac_address schoolid

Example
Sample CSV file

Step 2: Import the Devices by MAC CSV File into Device Registration Portal

  • 1. In the Device Registration Portal, click the Devices tab, then click Add Device.
  • 2. Click the Add from CSV tab.

drp9

  • 3. Click Browse to select the CSV file containing the list of devices, then click Open.

drp8

  • 4. Click Add.

Transparent Tier Registration

When the Rocket has multiple tiers and a Mobile Filter connects to it for the first time, the Rocket will redirect the client to the School ID page where the client will input the school ID to identify what tier/school they are part of.

With transparent tier registration you can import the device’s MAC address into mobile.lsfilter.com along with the corresponding school ID. This allows the device on checkin to provide the needed client information so that when a policy query is made the Rocket can automatically bind the device without user interaction. This allows the device to be bound to the correct tier based on school ID.

You can find your school ID by logging into your Rocket and then making sure the correct tier is selected. Next, click Web Filter and then Mobile Devices. Your school ID is listed in the School ID table on this page.

Requirements:

  • Rocket running Release 2.7.7 or later
  • Posix Mobile Filter 6.0.7 or later
  • OS X Mobile Filter 6.0.7 or later
  • Windows Mobile Filter 6.0.6 or later
